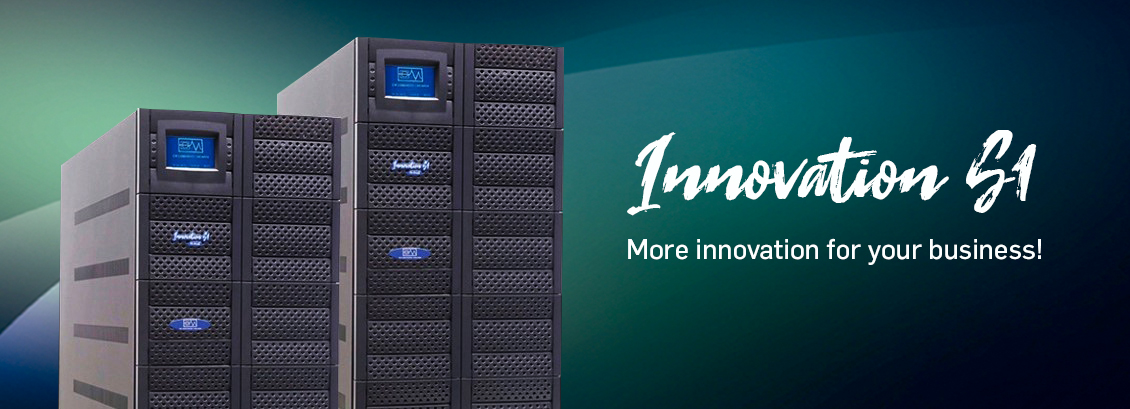

UPS Innovation S1

10 A 40 kVA - THREE PHASE

innovaion S1

innovation site ok

The entire line of Innovation S1 UPSs feature high input and output power
factor and transformerless double conversion technology that provides greater energy efficiency and reliability,
making them ideal for mission-critical applications. In this way, they protect applications where continuity of operation is of fundamental importance.

Designed with intensive use of DSP technology, the UPS Innovation S1 adds new and advanced
features that establish a new concept in development, in which the equipment
firmware can be updated by adding new functions to the units already installed.

Main Features

  • Voltage 220V/380V
  • Input Power Factor: 0.99
  • Output Power Factor: 0.9
  • Powers: 10kVA, 15kVA, 20kVA, 30kVA and 40kVA
  • Internal self-maintenance static bypass
  • Display Touch Screen
  • Transformerless Double Conversion

Constructive Details

Models with internal batteries
ModelPower (kVA)SIZE (mm)
height x width x depth
WEIGHT VOLTAGE
(V)
1000010,0680 X 415 X 835138220
1500015,0680 X 415 X 835196220
2000020,0830 X 415 X 940196220
3000030,0830 X 415 X 940253220
For further information, get in touch with us.
Models with internal batteries
ModelPower (kVA)SIZE (mm)
heigh x width x weight (kg)
weight (Kg)Voltage
(V)
1000010,0680 X 415 X 835178380
1500015,0680 X 415 X 835196380
2000020,0680 X 415 X 835196380
For further information, get in touch with us.
Models without batteries
ModelPower (kVA)SIZE (mm)
height x width x depth
Weight (Kg)Voltage
(V)
1000010,0680 X 415 X 83580220/380
1500015,0680 X 415 X 83580220/380
2000020,0830 X 415 X 94095220
2000020,0680 X 415 X 83580380
3000030,0830 X 415 X 94095220/380
4000040,0830 X 415 X 94095380
For further information, get in touch with us.
